LCpro-SD

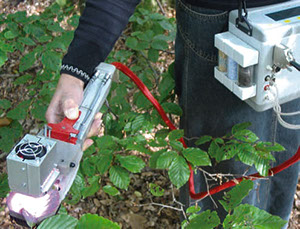

  • The LCpro-SD is a portable photosynthesis measuring system with fully programmable microclimate control. This system is very easy to use, yet repeatable, accurate and reliable. CO2 is measured to 1 ppm or 1 μmole, and H2O is measured to 0.1 mbars or 1 mmole. The range for CO2 measurement is 0-3000 μmoles, and the range for H2O measurement is 0-75.5 mmoles. The system has an auto-zero calibration that occurs after every photosynthesis measurement. It is ideal for A/Ci curves, light curves, and temperature curves. Measured values are corrected for atmospheric pressure and IRGA drift. Various special measuring chambers are available for Arabidopsis, conifers, narrow leaves, and soil respiration. Now available with a white light LED source that that allows chloroplast migration, and the full effects of the xanthophyll photoprotective cycle. Leaf temperature and PAR are measured while battery charge life is about 16 hours.

  • Measurement range and technique:



    CO2:

    0-3000 ppm, 1 ppm resolution.



    Infrared gas analysis, differential open system, auto zero, automatic atmospheric pressure and temperature compensation.



    H2O:

    0-75 mbar, 0.1 mbar resolution.



    Two laser trimmed, fast response water vapor sensors.



    PAR:

    0-3000 μmols /m2 /sec.

    Silicon photocell.



    Chamber temperature:

    -5 to 50 degrees C. Precision thermistor  +/- 0.2oC accuracy.



    Direct Leaf temperature:

    -5 to 50 degrees C.



    Self positioning microchip thermistor/Energy balance/ manually positioned thermistor.



    Flow rate to Leaf Chamber:

    100 to 500 ml/min.



    Automatic environmental control:



    Programming:

    Internal LCpro-SD menu driven software. Automatic and independent control of environmental conditions within the leaf chamber. For automatic response curves, sequential control levels and dwell times may be set.



    CO2:

    Up to 2000 ppm CO2, by integral elevated CO2 supply system.



    H2O:

    Above and below ambient (dependent on ambient conditions), by on-board self-indicating conditioning chemicals.



    Temperature:

    Micro-peltier element. Broad chamber typically +/- 14 degrees C from ambient. Other chambers with temperature control better than +/- 10 degrees C from ambient.



    PAR:

    Up to 2000 μmols/m2 /sec, (conifer up to 1500 μmols/m2 /sec) by high efficiency, low heat output, mixed red/blue LED array unit.



    Warm up time:

    5 minutes @ 20 degrees C.



    Display:

    240 x 64 dot matrix super twist graphic LCD.



    Recorded data:

    Removable SD cards typically store 16 million sets of data on a 1 Gb card.



    Battery:

    7.0Ah 12V lead acid battery. Up to 16 hours between charges.



    Battery charger:

    Universal input voltage intelligent control.



    Electrical outputs:



    USB connection:

    Mini-B.

    Functions as a mass storage device.



    RS232 output:

    9 Pin ”D” type.

    User-selectable rates of up to 230,400 BAUD for computer or printer connection.



    Operating temperature range:

    5 to 50 degrees C.



    Dimensions H x W x D:

    Console: 230 x 110 x 170 mm.

    Plant Leaf Chamber: 300 x 80 x 75 mm.



    Weight:

    Console:  4.5kg.

    Plant leaf chamber: 0.8kg.
